Planter Parts and Equipment

  • Closing Wheels for Planters
  • Gauge Wheels
  • Keeton Seed Firmers for Planters
  • Mojo Wires for Planters
  • Opener Assemblies
  • Planter Parts
  • Valion Seed Tube Guards

    • Opener Assemblies

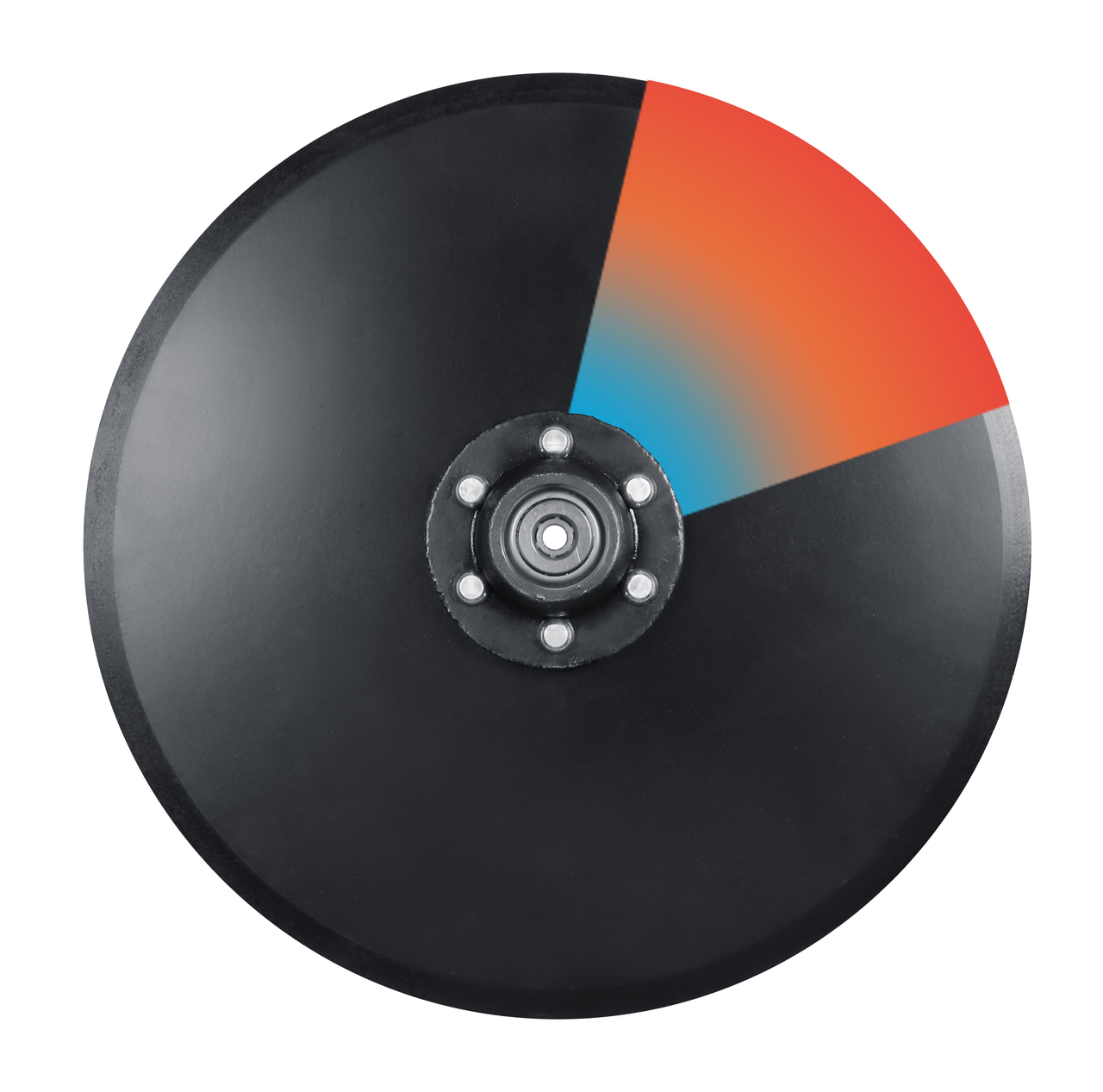

    KIT-DISC OPENER, FDN 205, JD ME5/XP, KINZE 3000/4000/5000 15" (W/ CAP)

    20% more wear life than OEM / Ingersoll / Bellota. The Forges de Niaux takes it to the next level with a unique steel and special heat-treat process. Same dimensions as OEM. Uses Peer double-row 205 bearings, whereas OEM and other aftermarket are double-row 204 bearings (smaller diameter). They also use 5/16" rivets instead of 1/4".
    $55.08
    Add
    Info

    KIT-DISC OPENER, FDN 204, JD ME+, KINZE, 15" (W/ CAP)

    Forges de Niaux's superior blades for JD MaxEmerge PLUS (Pre-XP) and Kinze. Same dimensions as OEM, but with the greater durability of the Forges de Niaux! Harder on the periphery, for 20% greater wear life. Peer 204 bearing and rivet. Stays sharper longer. (REPLACES USE OF DISC ONLY P/N 03-10518)
    $47.92
    Add
    Info

    KIT-DISC OPENER, FDN WHITE 9000 / PRECISION / MOMENTUM 15.8" (W/ CAP)

    Forges de Niaux's superior blades for White 9000, Precision, Momentum. Same dimensions as OEM, but with the greater durability of the Forges de Niaux! Harder on the periphery, for 20% greater wear life. Stays sharper longer. (REPLACES USE OF DISC ONLY P/N 03-10003)
    $71.58
    Add
    Info

    KIT-BOLT, 205 DOUBLE ROW DISC OPENER FOR KINZE 3000/4000

    HEX HEAD BOLT KIT, 5/8 -11 X 1-3/4", RH & LH THREADED BOLTS GRADE 5, KINZE 3000 & 4000 SERIES 1 KIT NEEDED PER ROW UNIT TO INSTALL QTY 2 OF 03-10517 FDN 205 DBL BEARING DISC OPENER IF REPLACING OEM OR SINGLE ROW BEARING DISC OPENER WITH 1-1/2" LONG BOLT.
    $8.00
    Add
    Info

    All About Opener Assemblies

    You asked. We deliver! Forges de Niaux offers a longer life, stay-sharp blade with a hub, bearing and rivets that hold up! 30 – 40% more wear life than competing openers. The Forges de Niaux takes it to the next level with a unique steel and special heat-treat process. Same dimensions as OEM. Uses Peer double-row larger 205 bearings, whereas OEM and other aftermarket are double-row 204 bearings (smaller diameter). They also use 5/16″ rivets instead of 1/4″. We can source FDN opener blades for most models and brands of planters including Pre-XP, Kinze, White and Case. Just call and ask!

    The stamped hub is finish-machined—unlike any other—creating an improved fit over all other brands. FDN narrowed the tolerances to 50 thousandths axial runout and 1/16″ radial runout, whereas industry tolerances are 80 thousandths axial runout and 1/8″ radial runout. The bearing is never loose in the hub, nor too tight (which shortens bearing life). The order of the finish machining (rivet holes after the centerline is established), along with the powder coat painted blade, ensures everything is within tolerances and the bearing doesn’t fail prematurely from misalignment.

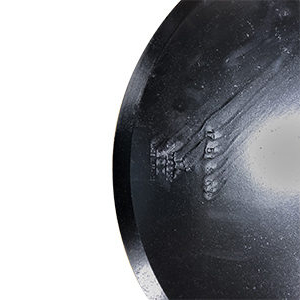

    Tough, Proven

    The Niaux 205 and 204 blades stay sharp longer. But the additional wear life on the Niaux 200s doesn’t impair their toughness, because the extra hardening occurs only on the outermost inch or so (also, they use a different steel to handle the additional hardening—it’s not the usual 15B30 steel that all the other blades are made from).

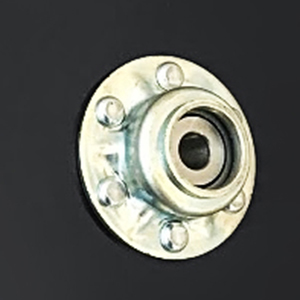

    Better Bearing

    Uses Peer double-row 205 bearings, whereas OEM and other aftermarket are double-row 204 bearings (smaller diameter). The stamped hub is finish-machined—unlike any other—creating an improved fit over all other brands.

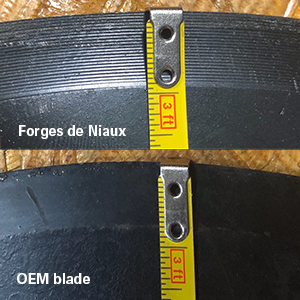

    Sharper, Deeper Bevel

    Forges de Niaux blades have a deeper bevel of 3/4″ vs others that are only 5/8″. The sharpest, longest-lasting blades on the market.

    Learn
    “The Forges de Niaux (FDN) blades are by far the best drill blades on the market. I ran FDN, Ingersoll and Edmondson blades side-by-side and the FDN wear better and longer than the others. I can get at least 1 year to 1.5 years out of the Ingersoll and Edmonson blades, but not a full two years. With the FDN, I can get a full 2 years at least. It takes too much time to tear down mid-season to replace blades, so the FDN blades lasting 2 years is great. I now have the entire drill with the FDN blade.”
    ND Farmer
    (chose to be anonymous due to salvaging JD relationship), Exapta customer since 2018 (1890 JD drill)

    Keep In Touch

    X-twitter Facebook-f Youtube Instagram Envelope
    Download Catalog

    Content of this page is copyright 2005-2024 Exapta Solutions, Inc. (reprint with written permission only).

    Thompson wheel covered by U.S. Patent No. 6,907,833. Liquid delivery feature of Valion seed tube guards is U.S. Patent No. 8,978,564. Ninja seed bounce flap U.S. Patent Pending. UniForce U.S. Patent Pending. All rights reserved on other designs. Exapta is a registered trademark of Exapta Solutions, Inc. Keeton is a registered trademark of Precision Planting. Mojo Wire, Thompson wheel, Valion guard, Ninja flap, UniForce, DuraLok, No-till Seeding Explained, and No-till Seeding School are trademarks of Exapta. Disclaimer: Recommendations & page content are current, accurate, and believed to be broadly applicable as of the time of writing (Dec 2005) and last update (2005 – 2014). Because of diversity of soils, climate, crops, planter & drill models/designs marketed worldwide, combinations of attachments, etc., actual results may vary. No warranty is made as to actual results obtained. Should you encounter exceptions or worthwhile annotations to the statements made on this page, please contact us.

    “I tried the JD and the Ingersoll opener blades. Our JD 1895 drill (42ft on 10”) runs across 5000 acres on average a year. I could never get entirely through the year with JD or Ingersoll blades, but with the Forges de Niaux blades I can get another 500-1000 acres. I am very happy with these. We have such hard rocks and soil that we run across, so it’s really hard to keep disc up-to-par. With the Forges de Niaux openers we can actually make it through the season and then some.”
    Corey Schumacher
    Napoleon, ND , Exapta customer since 2018 (Forges de Niaux blades on JD 1895 drill)
    “I planted 4500 acres this year without a single problem. Very pleased with them. This is a great product.”
    Alan Jung
    Ipswich, SD, Exapta customer since 2019 (JD 16 row XP planter)
    “The FDN blades I put on last fall have worn really good. I’ve put on 8,000 acres and they look great, yet. Granted last year soils were wetter conditions, but I can’t believe the limited wear. At this rate, I wonder if we’ll get another 12,000 acres.”
    Alan Patterson
    Anthony, KS, Exapta customer since 2013 (42ft JD drill – 68 openers)
